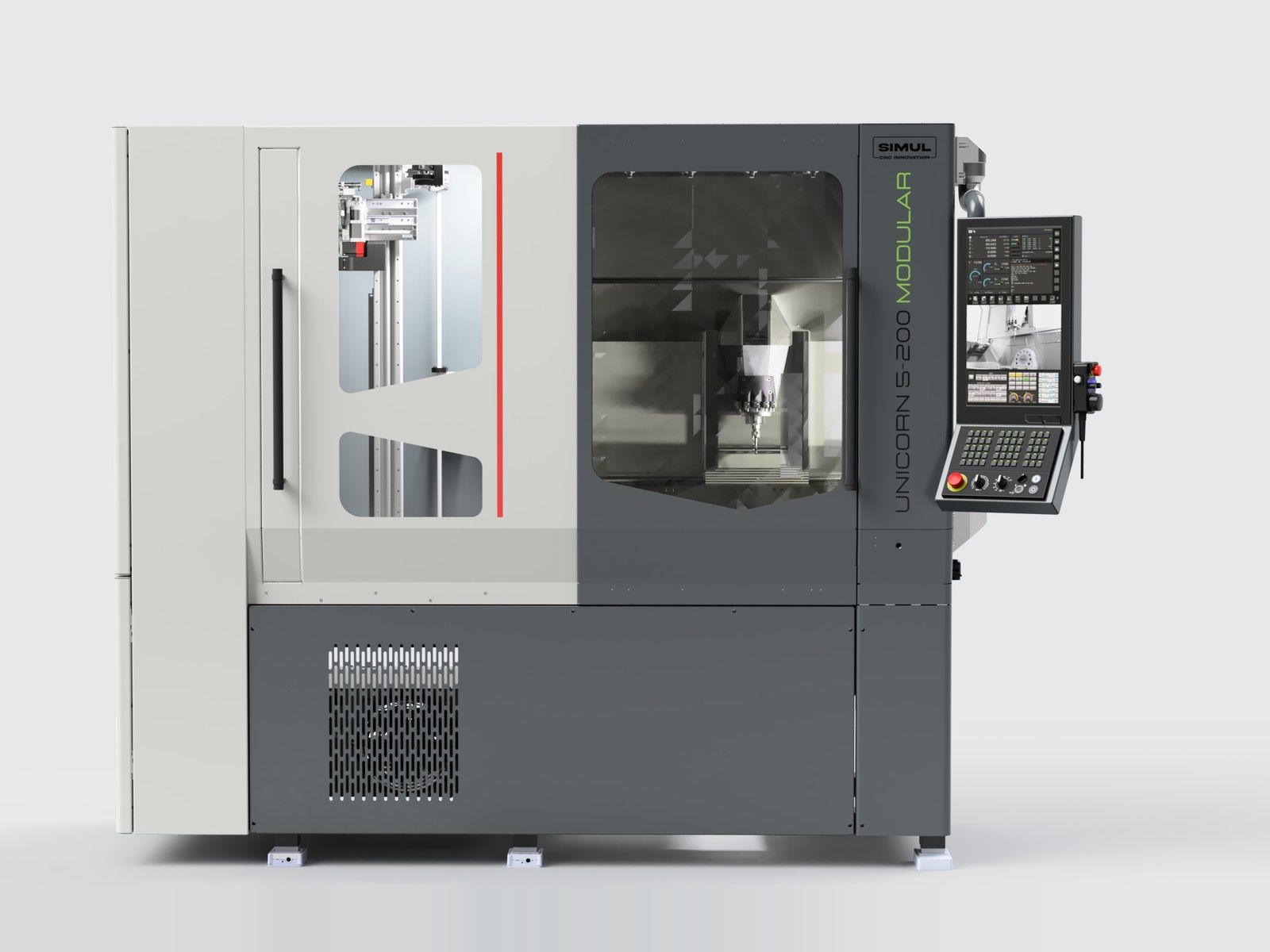

The Unicorn 5-200 Modular is a compact 5-axis machining center, designed to stack into an automated cluster.
Base machine
from €240k
excluding VAT
0-60,000 rpm, 3.6 kW, ceramic bearings, spindle chiller at ±0.1 °C
78 tools, plus one in the spindle
5-axis simultaneous
8 bar, 200 L coolant tank
vibration damping and thermal stability
410 × 308 mm, CNC-controlled
All specifications can be found on the specifications page.
Full specificationsPricing ex. VAT.
Zero-point workholding and automatic doors decide how much of the loading a robot can take over.
| Option | What it does | Price |
|---|---|---|
| Hydraulic feed-through machine table | Machine table with an AMF 6204IHA K10.2 zero-point interface and hydraulic supply for automated workholding | Quoted with the machine |
| Zero-point vise pallet | Spreitzer HZS 120-60 A hydraulic centric vise on an AMF-compatible pallet with a robot gripping interface | Quoted with the machine |
| Automatic robot side door | CNC-controlled side door with a 410 × 308 mm opening for robot access to the machining area | Standard / included |
| Automatic rear door for the ATC | CNC-controlled rear door for robot access to the tool magazine and automated tool exchange | Quoted with the machine |
Probing and absolute encoders for setup, in-process measurement, and accuracy checks on the machine.
| Option | What it does | Price |
|---|---|---|
| Renishaw Fortis-N absolute linear encoders | X, Y, and Z; ±3 µm accuracy grade, non-contact | Quoted with the machine |
| AMO WMKA absolute rotary encoders | B and C axes; inductive, ±3 µm graduation accuracy, non-contact | Quoted with the machine |
| Renishaw NC4+ Blue F145 tool setter | Non-contact tool measurement and breakage detection, with the FANUC tool-setting software | Quoted with the machine |
| Renishaw RMP24-MICRO touch probe | Radio probe with RMI-QE interface and HSK-E32 shank, with Set and Inspect for FANUC | Quoted with the machine |
| Renishaw Reporter | Probing reports on the FANUC control | Quoted with the machine |
| Renishaw AxiSet Check-Up | Rotary-axis alignment verification | Quoted with the machine |
Coolant pressure, chip handling, and mist extraction, matched to your materials and run times.
| Option | What it does | Price |
|---|---|---|
| 70 bar through-tool coolant | High-pressure coolant through the tool, for deep features and small drills | Quoted with the machine |
| Chip conveyor | Hinged steel, CNC-controlled, two-stage filtration; the 200 L coolant tank is standard | Quoted with the machine |
| TCSM MKII-SMART oil mist collector | 1,000 m³/h, 95% filter efficiency, motor and filter condition monitoring | Quoted with the machine |

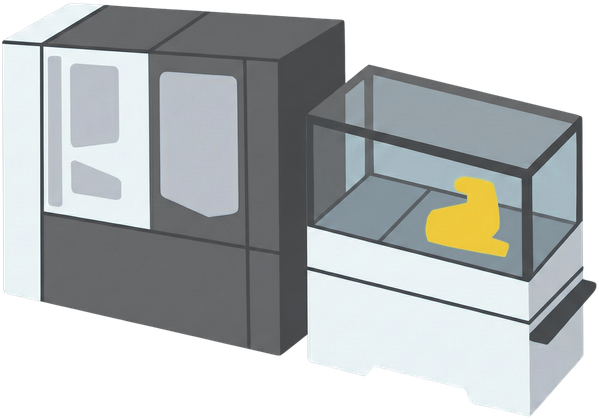

The FANUC LR Mate cell is priced by configuration: part spectrum, clamping, and cycle logic.
| Option | What it does | Price |
|---|---|---|
| FANUC LR Mate robot cell | Designed for lights-out part loading, priced by part spectrum, clamping, and cycle logic | Quoted per configuration |
Installation and commissioning at your site, itemized in the quote.
| Option | What it does | Price |
|---|---|---|
| Installation | Delivery and setup at your site | Quoted with the machine |
| Commissioning | First-article and handover at your site | Quoted with the machine |
You describe your parts and volumes in a product inquiry, with a drawing if you have one. A person at SIMUL answers within two business days.
A configured price (excluding VAT), the delivery terms, and the current lead time. Installation and commissioning are quoted with the machine, itemized, so you see what each one costs. The robot cell is quoted per configuration, whether you order it with the machine or add it later.
Come to Veksø before you order: see where the machine is built and talk to the people who build it. Bring a drawing. Ask for a visit and we will find a date.
Every machine is tested in Veksø before it ships. The test report lists measured values against the published specification and ships with the machine.
The module weighs about 2,300 kg and can be moved with a standard pallet truck. SIMUL installs and commissions machines at customer sites across Europe. Installation and commissioning are quoted with the machine, itemized.
Every customer is offered training at their own site, right after commissioning. Every machine ships with its manuals, schematics, and a backup of the machine parameters. The control, spindle, probing, and rotary drives come from FANUC, IBAG, Renishaw, and Harmonic Drive.
A machine at this price is decided by several people. Forward this page, or the part of it that answers them.

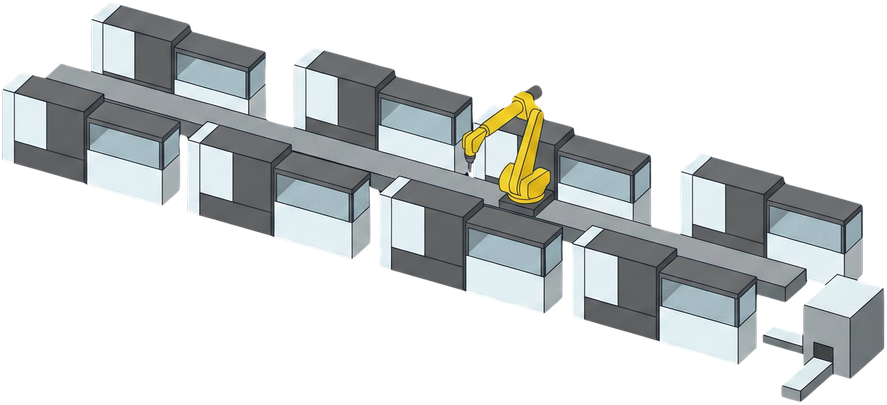

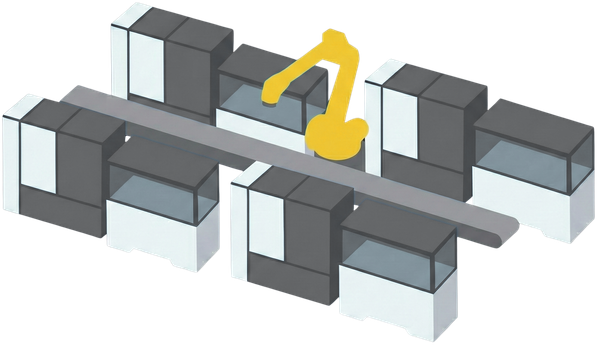

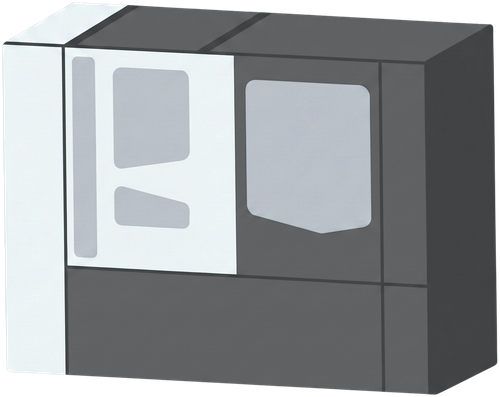

Each Unicorn 5-200 Modular is a complete 5-axis machining center. Machining and automation modules in a cluster are designed to share tool, pallet, and material handling, so you scale capacity by adding a module and keep every module you already run.
A small team that designs and builds the machines in Veksø. Meet the team.
